RCDE-T超強油冷電磁除鐵器
RCDE-T系列超強油冷電磁除鐵器線圈經特殊工藝處理，耐熱性能顯著提高，變壓器油循環冷卻，提高了熱傳導速度，能有效降低溫升。額定吊高處的磁場強度遠大于國際除鐵器的磁場強度。該系列產品采用全封閉結構，防塵、防雨能適應較為惡劣的環境。

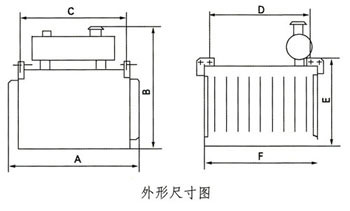

| 型號 | 適用帶寬mm | 額定吊高mm | 磁場強度MT | 勵磁功率KW | 風機功率KW | 外型尺寸mm | 適用帶速≤m/s | |||
L | W | H | ||||||||
RCDA-6.5 RCDE-6.5 | T1 | 650 | 200 | 90 | 3 | 0.37 | 1050 | 1100(710) | 570(860) | 2.5 |
T2 | 120 | 5 | 0.75 | 1090 | 1100(750) | 600(890) | ||||
T3 | 150 | 8 | 1.1 | 1090 | 1100(750) | 625(920) | ||||
RCDA-8 RCDE-8 | T1 | 800 | 250 | 90 | 5 | 0.37 | 1180 | 1260(900) | 650(920) | 2.5 |
T2 | 120 | 9 | 0.75 | 1180 | 1260(900) | 700(960) | ||||
T3 | 150 | 13 | 1.1 | 1180 | 1260(900) | 750(1010) | ||||
RCDA-10 RCDE-10 | T1 | 1000 | 300 | 90 | 7.5 | 0.75 | 1380 | 1480(1100) | 730(1030) | 2.5 |
T2 | 120 | 12.5 | 1.1 | 1380 | 1480(1100) | 780(1090) | ||||
T3 | 150 | 16.5 | 1.5 | 1380 | 1480(1100) | 850(1120) | ||||
RCDA-12 RCDE-12 | T1 | 1200 | 350 | 90 | 10 | 1.5 | 1600 | 1620(1300) | 860(1150) | 2.5 |
T2 | 120 | 14 | 1.5 | 1600 | 1620(1300) | 910(1210) | ||||
T3 | 150 | 21 | 2.2 | 1600 | 1620(1300) | 920(1250) | ||||
RCDA-14 RCDE-14 | T1 | 1400 | 400 | 90 | 14 | 1.5 | 1780 | 1860(1460) | 920(1270) | 2.5 |
T2 | 120 | 18 | 0.75*2 | 1780 | 1860(1460) | 1000(1300) | ||||
T3 | 150 | 26 | 0.75*2 | 1780 | 1860(1460) | 1100(1350) | ||||
RCDA-16 RCDE-16 | T1 | 1600 | 450 | 90 | 15 | 1.5 | 1980 | 2060(1660) | 1100(1340) | 2.5 |
T2 | 120 | 22 | 1.1*2 | 1980 | 2060(1660) | 1130(1400) | ||||
T3 | 150 | 32 | 1.5*2 | 1980 | 2060(1660) | 1170(1460) | ||||
RCDA-18 RCDE-18 | T1 | 1800 | 500 | 90 | 19 | 1.1*2 | 2050 | 2300(1950) | 1120(1440) | 2.5 |
T2 | 120 | 28 | 1.5*2 | 2050 | 2300(1950) | 1200(1540) | ||||
T3 | 150 | 38 | 2.2*2 | 2050 | 2300(1950) | 1250(1610) | ||||
RCDA-20 RCDE-20 | T1 | 2000 | 550 | 90 | 24 | 1.5*2 | 2660 | 2500(2300) | 1250(1540) | 2.5 |
T2 | 120 | 32.5 | 2.2*2 | 2660 | 2500(2300) | 1350(1610) | ||||
T3 | 150 | 45 | 2.2*2 | 2660 | 2500(2300) | 1380(1650) | ||||
RCDA-22 RCDE-22 | T1 | 2200 | 600 | 90 | 28 | 1.5*2 | 2410 | 2700(2610) | 1400(1630) | 2.5 |
T2 | 120 | 36 | 2.2*2 | 2410 | 2700(2610) | 1430(1660) | ||||
T3 | 150 | 52 | 3.0*2 | 2410 | 2700(2610) | 1450(1690) | ||||
RCDA-24 RCDE-24 | T1 | 2400 | 650 | 90 | 32 | 2.2*2 | 2610 | 2900(2870) | 1450(1740) | 2.5 |
T2 | 120 | 43 | 2.2*2 | 2610 | 2900(2870) | 1500(1780) | ||||
T3 | 150 | 62 | 3.0*2 | 2610 | 2900(2870) | 1570(1890) | ||||
注：括號內的尺寸為RCDE-T系列，此系列無風機功率項。 | ||||||||||
